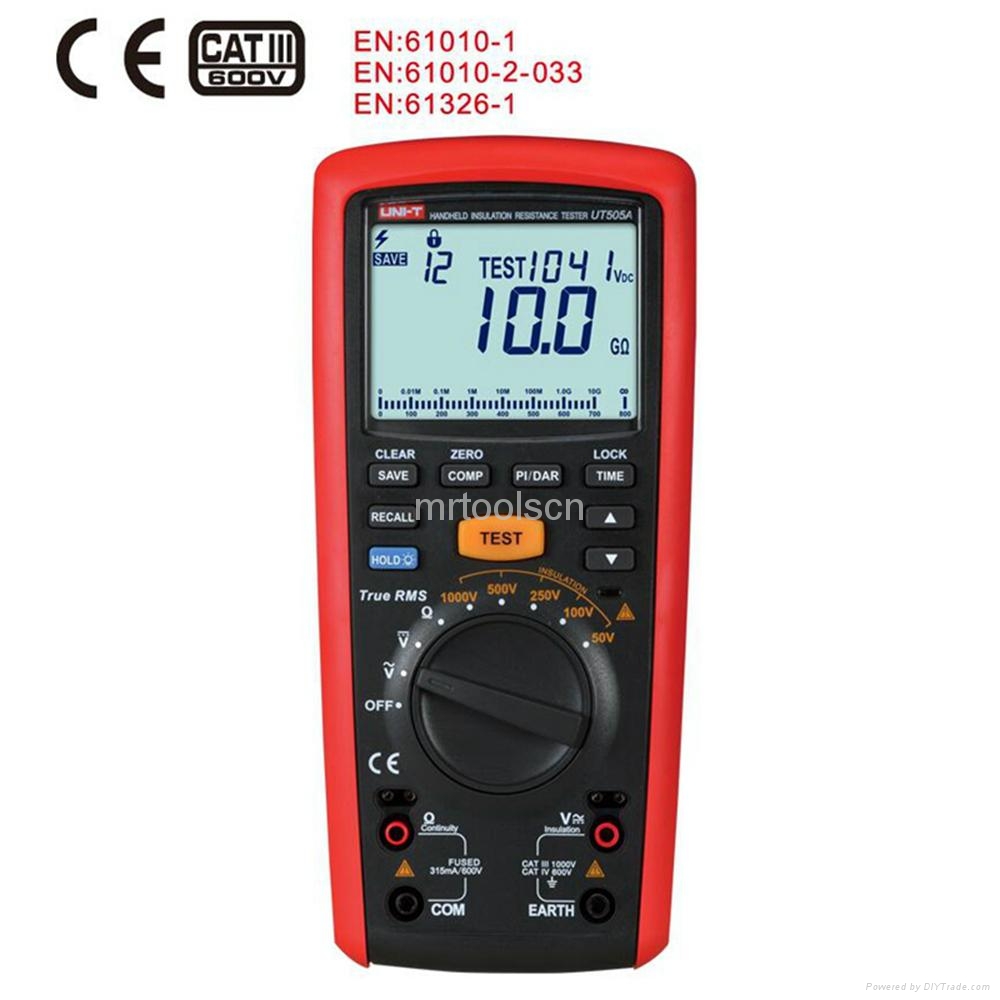

UNI-T UT505A 1000V Digital Handheld True RMS Megger Insulation Resistance Tester Multimeter Ohm Voltmeter
Introduction
UT505A is a kind of handled insulation resistance tester, which has the parameters such as insulation resistance, AC/DC voltage and etc. This machine has high accuracy and stable
Performance with wide range of function. It apply to maintain, test and check the transformers, electrical machines, cables, switch, electric appliances and the other electrical equipments as well as insulation resistance with insulation materials. UT505A is your ideal choice.
Features:
1 Show the actual value of insulation voltage 50V/100V/250V/500V/1000V
2 Insulation resistance can be test to 20GΩ
3 Measured absorptance / polarization index ,low –resistance test (20kΩ)
4 Step voltage regulation , the function of remote detection test lead and comparison
5 600V AC/DC voltage ,99 data loging
6 Safety level: CAT III 1000V CAT IV 600V
7 Brand-new designed, portable and easy to control.
Features:
Display Count: 6000
Auto Range: √
True RMS: √
Step Voltage: 10% Steps at 50% ~ 120% of range
DAR: 60s/15s and 60s/30s
PI: √
Timer: √
High Voltage Indication: √
Auto Discharge: √
Analogue Bar Graph: √
Auto Power Off: √
Continuity Buzzer: √
Data Hold: √
Data Storage: 99
Comparison: √
LCD Backlight: √
Low Battery Indication: √
General Characteristic:
Power: 6 * 1.5V AA Batteries (not included)
LCD Size: 78mm * 59mm
Product Net Weight: 630g
Product Size: 103mm * 225mm * 59 mm
Product Color: Red and Grey
Package Size: 24.5 * 18 * 7cm / 9.6 * 7 * 2.7in
Package Weight: 916g/ 2lb
Package List:
1 * UNI-T UT505A Insulation Resistance Tester

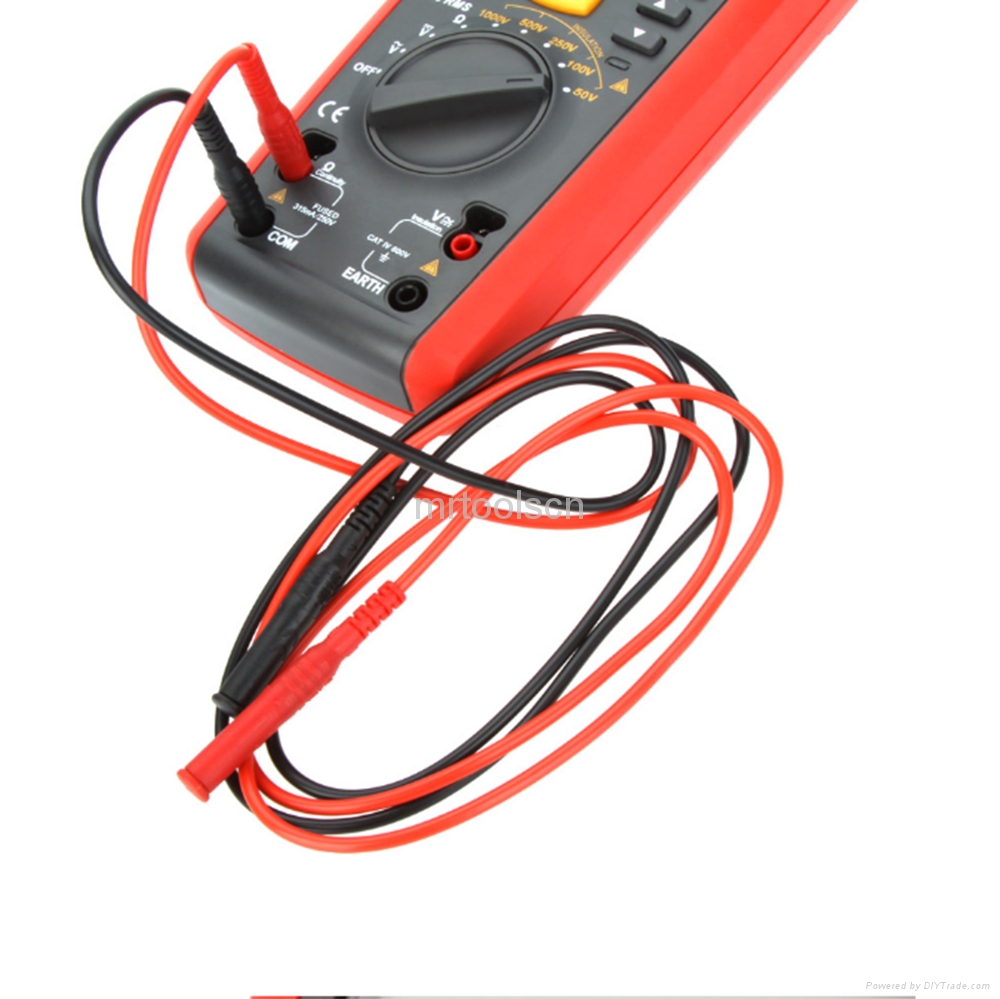

1 * Pair Test Lead
1 * Pair Probe
1 * Pair Alligator Clip
1 * English Manual
1 * Carrying Bag
