SPECIFICATIONS:
Display Count: 20000
D/Q Display Count: 2000
D/Q Resolution: 0.001
Auto Range: √
Real-Time Display Test Frequency: √
Measurement Mode: Series/Parallel
Auto Power Off: √
Low Battery Indication: ≤6.8V
Data Hold: √
Relative Mode: √
USB Interface: √
USB Interface/PC Data Records: 60000
LCD Backlight: √
Analogue Bar Graph: 26
Deviation Ratio Measurement: √
Comparsion Function: √
Calibration Function: √
Output Impedance: 120?
Auto LCR Smart Check and Measurement: √
Specification:
Model: UT612
Inductance (H): 20uH?2000H ±(0.5%+5)
Capacitance (F): 200pF?20mF ±(0.5%+5)
Resistance (ohm): 20??200M? ±(0.3%+5)
Test Frequency (Hz): 100Hz/120Hz/1KHz/10KHz/100KHz
Operational Voltage: 0.6Vrms
Test Parameters: L/C/R/DCR/Q/D/?/ESR
General Characteristic:
Product Net Weight: 374g
Product Size: 96 * 193 * 47mm
Power: 9V Battery?6F22) or USB(not included)
LCD Size: 40 * 63mm
Product Colour: Red and Grey
Package Size: 29 * 22.5 * 7cm / 11.4 * 8.8 *2.7in
Package Weight: 1157g / 2.5lb
Package:
100% Brand new

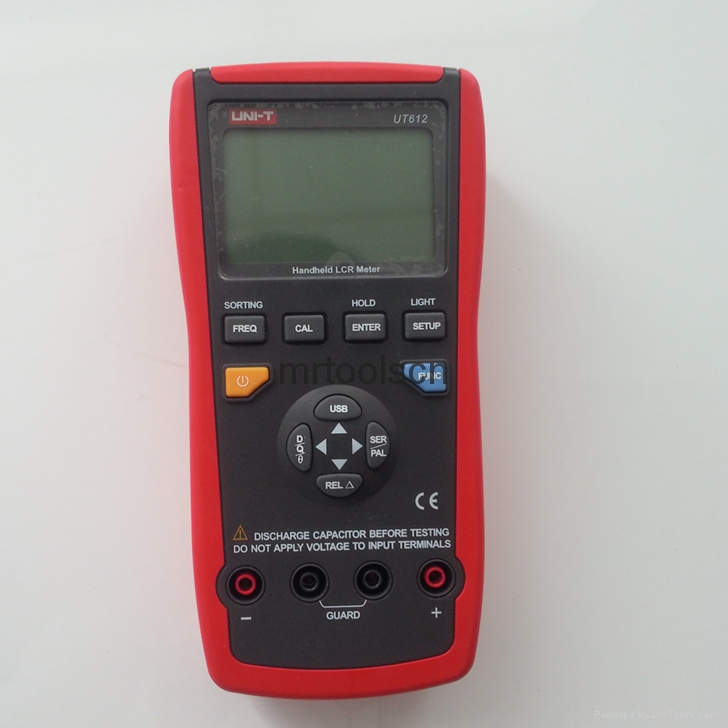

1 * UNI-T UT612 LCR Meter
1 * SMD Test Clamp
1 * USB Interface Cable
1 * Multi-Purpose Socket
1 * PC Software CD
1 * English Manual
