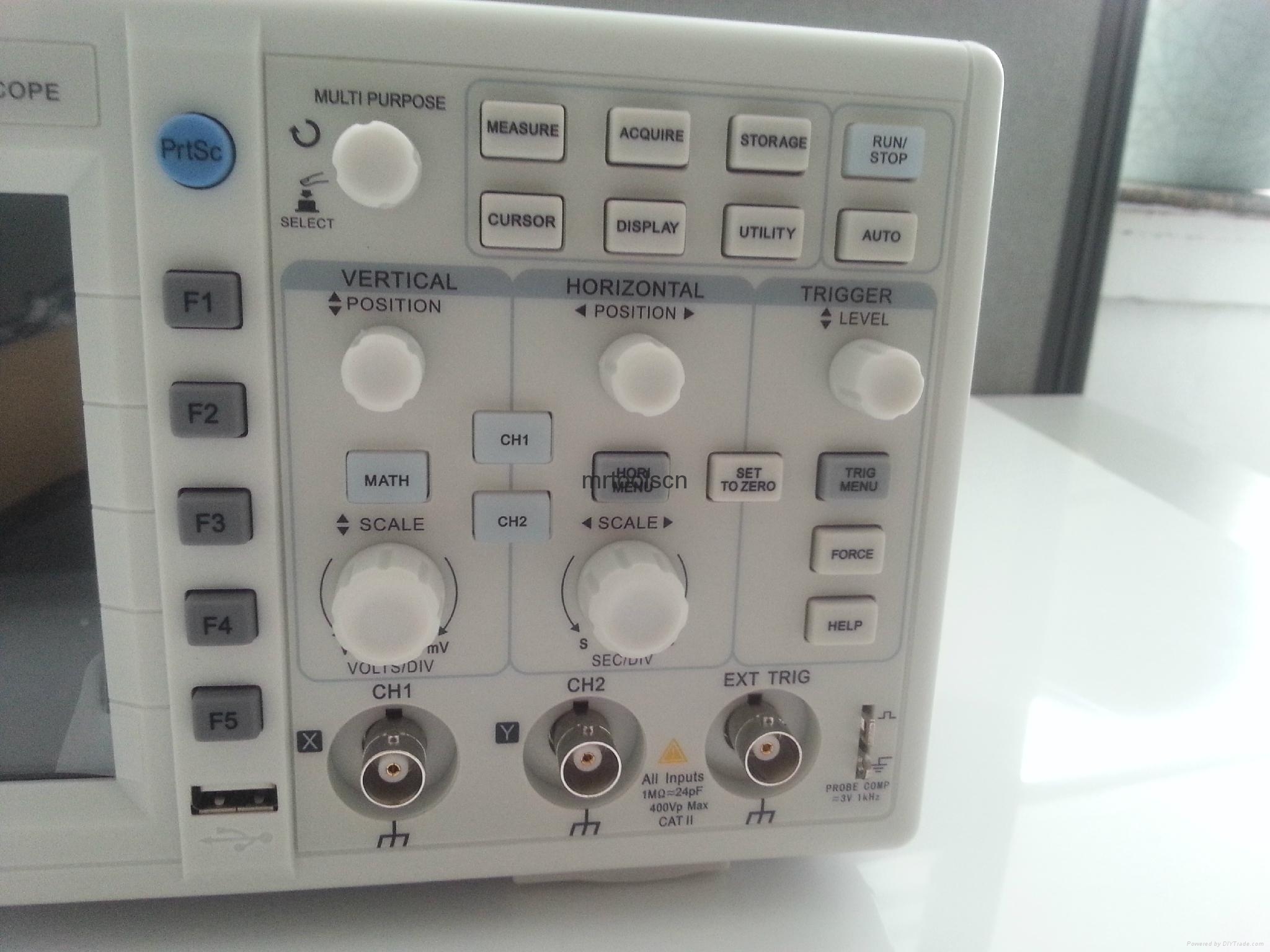

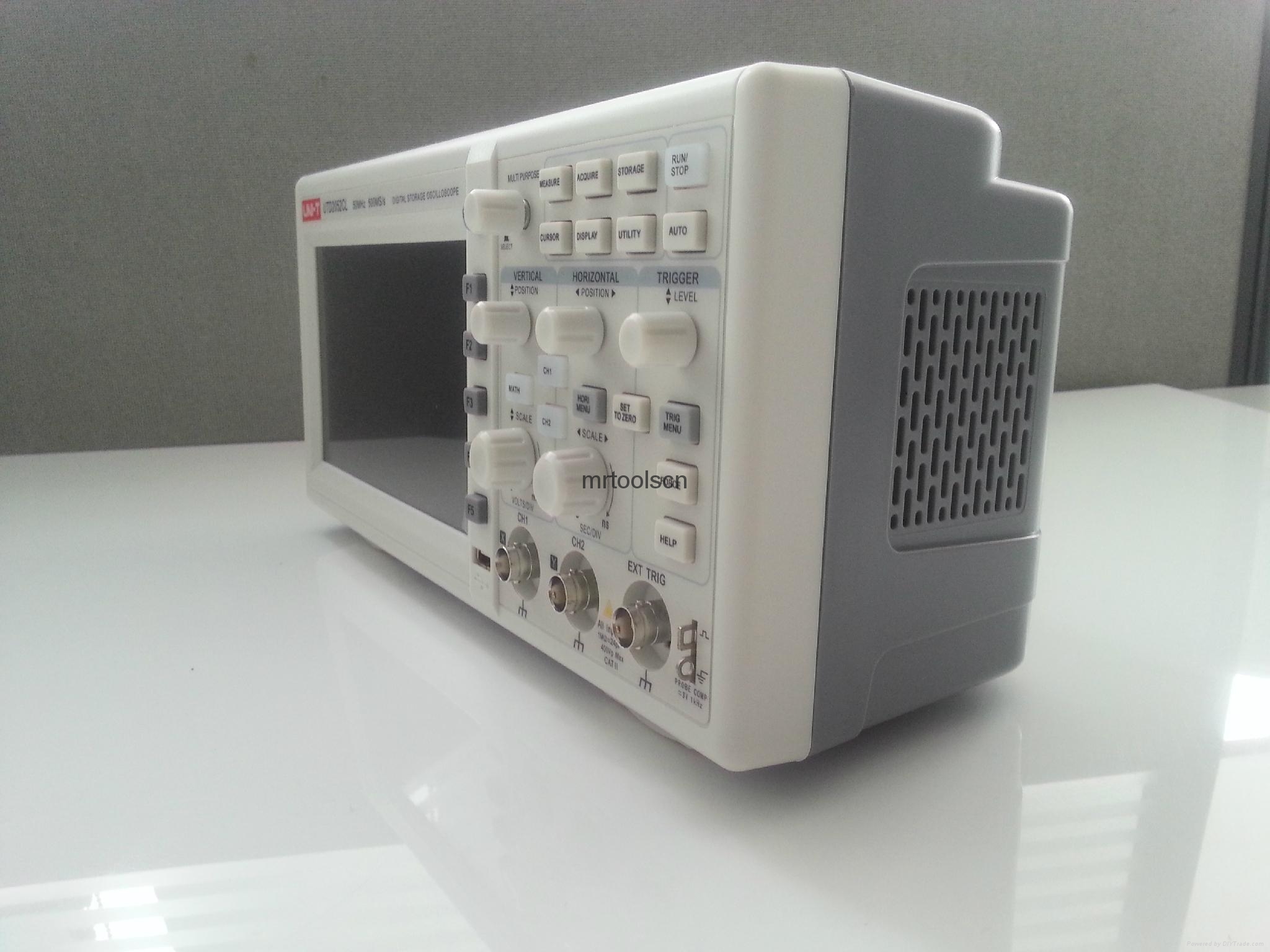

UNI-T UTD2025CL 25MHz 250Ms/s USB Digital Storage Oscilloscope DSO 2Channels 7\'\'TFT LCD Scopemeter W/ USB OTG EU/AU/US Plug
Specification:
Model: UTD2025CL
Channels: 2
Bandwidth: 25MHz
Sample Rate: 250Ms/s
Rise Time: 14ns
Memory Depth: 25kpts
Waveform Acquisition Rate: 2000wfms/s
Vertical Sensitivity: 1mV/div~20V/div
Timebase Range: 10ns/div~50s/div
Storage: Setup,Wave,Bitmap
Trigger Modes: Edge, Pluse, Video, Alternate
Interface: USB OTG,Pass/Fail
General Characteristic:
Power: 100-240VAC, 40-440Hz
Product Net Weight: 2.2 Kg
Product Size: 306mm * 147mm * 122mm
Display: 7 Inches 64K Color TFT LCD, 400×240
Product Color: White and Gray
Package Size: 39.5 * 24 * 21cm / 15.5 * 9.5 * 8.2in
Package Weight: 3464g / 7.6lb
Package List:
1 * UNI-T UTD2025CL Digital Storage Oscilloscope
2 * Test Probes(1×,10× switchable)
1 * AU Power Cable
1 * USB Cable
1 * PC Software CD
1 * English Manual
